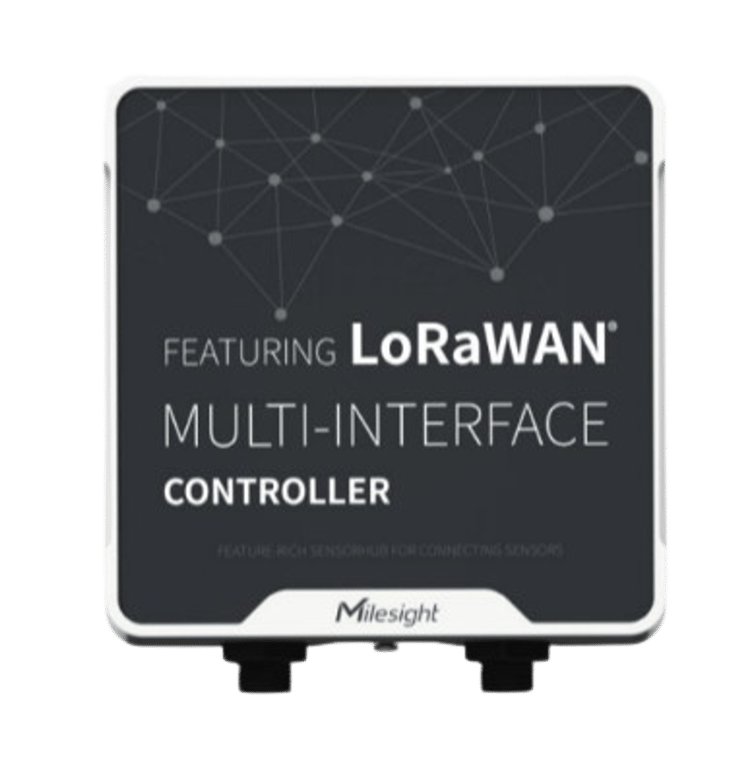

Controller
Product Specifications
Parameter | Specification |
Technology | LoRaWAN |
Model No. | DK-MISS-2223 |
Frequency | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 |
Tx Power | 16dBm (868 MHz)/20dBm (915 MHz)/19dBm (470 MHz) |
Sensitivity | -137dBm @300bps |
Work Mode | UC501: OTAA/ABP Class A, Class C
UC502: OTAA/ABP Class A |
Dimension | 116 × 116 × 45.5 mm (4.56 × 4.56 × 1.79 in) |
Operating Temperature | -20°C to +60°C |
Ingress Protection | IP67 |
