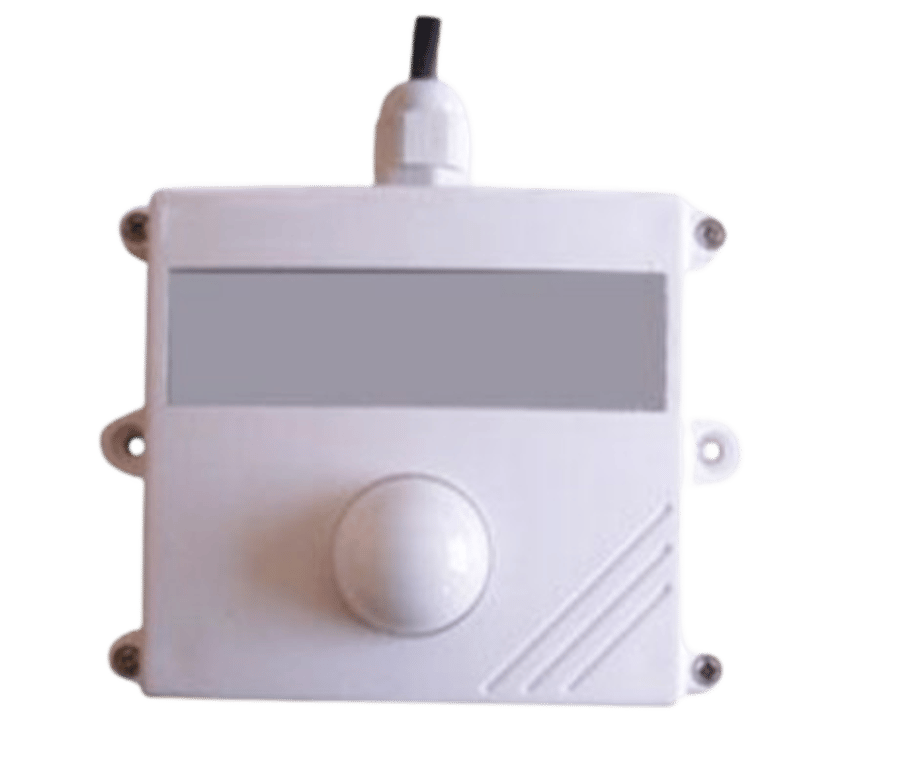

Light Sensor
Product Specifications
Parameters | Specifications |
Model No. | DK-MISS-2217 |
Measuring range | 0-200000Lux |
Wavelength range | 380 nm-730 nm |
Accuracy | ±7% |
Output form | Current: 4~20mA
Voltage: 0~5V
RS485
Other |
Load resistance | Voltage type: RL≥1K
Current type: RL≤300Ω |
Power supply mode | DC 12V
DC 24V
Other |
Working temperature | -10°C~70°C |
Relative humidity | 0~80%RH |
